SPECIFICATIONS



Wi-Fi: IEEE802.11 b/g/n 2.4GHz



Support Wholesale: Support Fast Shipping

State of Assembly: Ready-to-Go

Special Fuction: Smart Home Power Metering Control

Special Features: Via eWeLink/Amazon Alexa/Google Assistant Remote Control

Resistive Load: 2200W/ 10A/ Gang; 3300W/15A/ Total

Remote control: eWeLink APP/Alexa Echo/Google Home/Yandex Alice

Product Name: SONOFF DUALR3 / R3 Lite Dual Relay Module

Operating Temperature: -10-40 degree

Note 2: Sonoff DUALR3 does not support Homekit temporarily

Note 1: Siri voice control is a shortcut of Siri in eWelink

Motor Load: 10-240W/1A

Model Number: SONOFF DUALR3 / R3 Lite

Max Current: 15A(total),10A(1 gang)

Item Type: SONOFF Smart Home Dual Relay Module

Input: 100-240V AC 50/60Hz

Humidity: 5%-95%RH, Non-condensing

Gang: 2 Way

Frequency: 802.11 b/g/n

Feature 8: With Power Metering Smart Home Control

Feature 7: Sonoff wifi switch

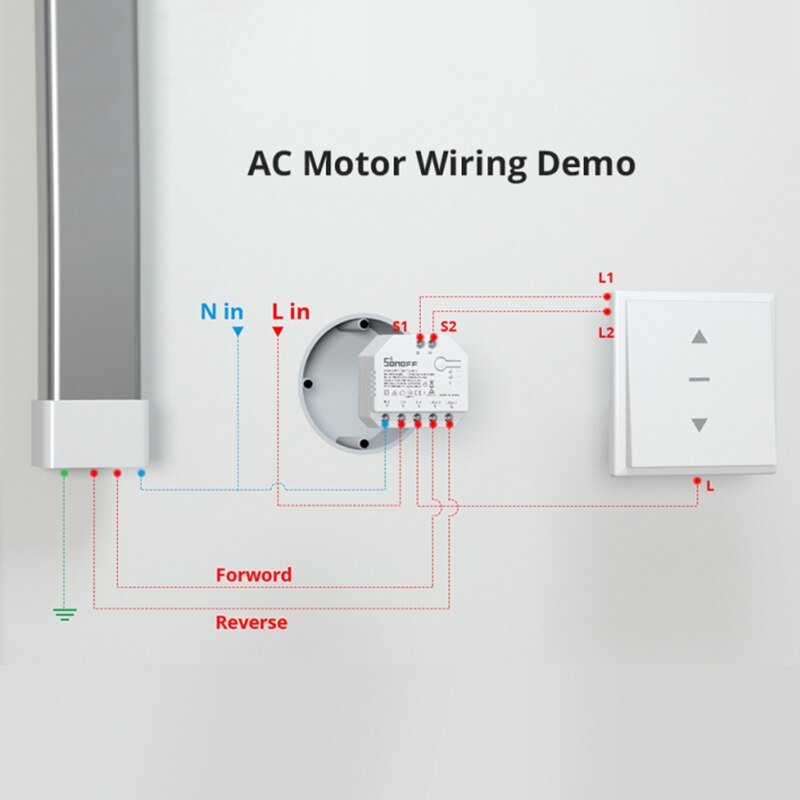

Feature 6: For bi-directional motorized curtain, blinds,roller shutter, awning

Feature 5: Support timing, voice control, smart scenes

Feature 4: Power Metering

Feature 3: SONOFF DualR3 can operate as a smart control module for 100-240V AC

Feature 2: SONOFF DUALR3 comes with switch mode, motor mode and meter mode

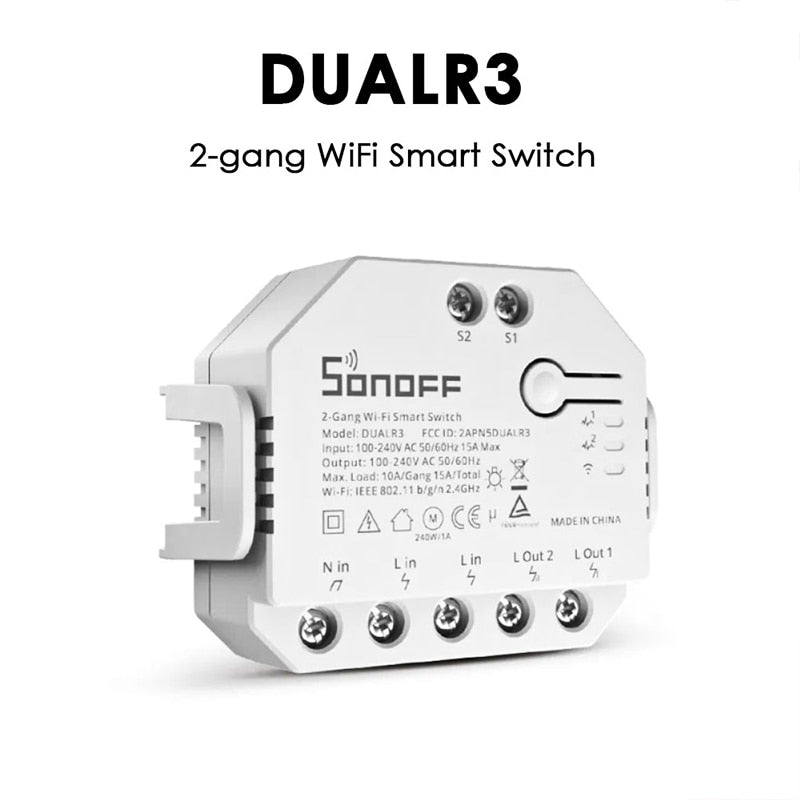

Feature 1: Sonoff DUALR3 is a flush-mounted Wi-Fi smart dual relay switch module

Enclosure Material: Fire-retardant ABS V0

Compatibility: All Compatible

Color: White

Certification: CE,FCC

Casing material: PC

Camera Equipped: No

Bundle: 2 Gang DIY MINI Smart Switch

Brand Name: SONOFF
